If it walks like a particle, and talks like a particle… it may still not be a particle. A topological soliton is a special type of wave or dislocation which behaves like a particle: it can move around but cannot spread out and disappear like you would expect from, say, a ripple on the surface of a pond. In a new study published in Nature, researchers from the University of Amsterdam demonstrate the atypical behaviour of topological solitons in a robotic metamaterial, something which in the future may be used to control how robots move, sense their surroundings and communicate.

Topological solitons can be found in many places and at many different length scales. For example, they take the form of kinks in coiled telephone cords and large molecules such as proteins. At a very different scale, a black hole can be understood as a topological soliton in the fabric of spacetime. Solitons play an important role in biological systems, being relevant for protein folding and morphogenesis – the development of cells or organs.

The unique features of topological solitons – that they can move around but always retain their shape and cannot suddenly disappear – are particularly interesting when combined with so-called non-reciprocal interactions. “In such an interaction, an agent A reacts to an agent B differently to the way agent B reacts to agent A,” explains Jonas Veenstra, a PhD student at the University of Amsterdam and first author of the new publication.

Veenstra continues: “Non-reciprocal interactions are commonplace in society and complex living systems but have long been overlooked by most physicists because they can only exist in a system out of equilibrium. By introducing non-reciprocal interactions in materials, we hope to blur the boundary between materials and machines and to create animate or lifelike materials.”

The Machine Materials Laboratory where Veenstra does his research specialises in designing metamaterials: artificial materials and robotic systems that interact with their environment in a programmable fashion. The research team decided to study the interplay between non-reciprocal interactions and topological solitons almost two years ago, when then-students Anahita Sarvi and Chris Ventura Meinersen decided to follow up on their research project for the MSc course ‘Academic Skills for Research’.

Solitons moving like dominoes

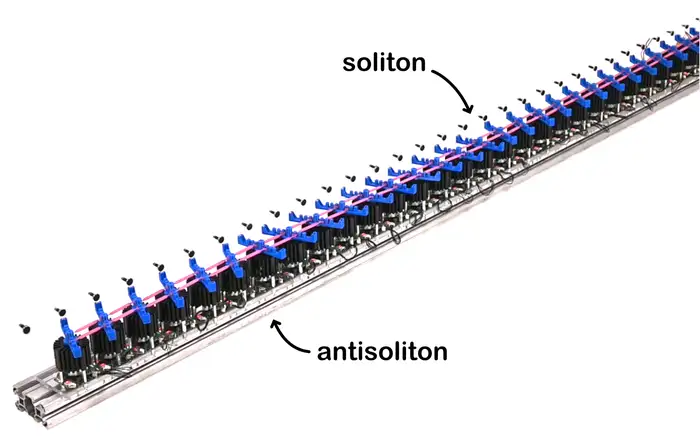

The soliton-hosting metamaterial developed by the researchers consists of a chain of rotating rods that are linked to each other by elastic bands - see the figure below. Each rod is mounted on a little motor which applies a small force to the rod, depending on how it is oriented with respect to its neighbours. Importantly, the force applied depends on which side the neighbour is on, making the interactions between neighbouring rods non-reciprocal. Finally, magnets on the rods are attracted by magnets placed next to the chain in such a way that each rod has two preferred positions, rotated either to the left or the right.

Solitons in this metamaterial are the locations where left- and right-rotated sections of the chain meet. The complementary boundaries between right- and left-rotated chain sections are then so-called ‘anti-solitons’. This is analogous to kinks in an old-fashioned coiled telephone cord, where clockwise and anticlockwise-rotating sections of the cord meet.

When the motors in the chain are turned off, the solitons and anti-solitons can be manually pushed around in either direction. However, once the motors – and thereby the reciprocal interactions – are turned on, the solitons and anti-solitons automatically slide along the chain. They both move in the same direction, with a speed set by the anti-reciprocity imposed by the motors.

Veenstra: “A lot of research has focussed on moving topological solitons by applying external forces. In systems studied so far, solitons and anti-solitons were found to naturally travel in opposite directions. However, if you want to control the behaviour of (anti-)solitons, you might want to drive them in the same direction. We discovered that non-reciprocal interactions achieve exactly this. The non-reciprocal forces are proportional to the rotation caused by the soliton, such that each soliton generates its own driving force.”

The movement of the solitons is similar to a chain of dominoes falling, each one toppling its neighbour. However, unlike dominoes, the non-reciprocal interactions ensure that the ‘toppling’ can only happen in one direction. And while dominoes can only fall down once, a soliton moving along the metamaterial simply sets up the chain for an anti-soliton to move through it in the same direction. In other words, any number of alternating solitons and anti-solitons can move through the chain without the need to ‘reset’.

Motion control

Understanding the role of non-reciprocal driving will not only help us to better understand the behaviour of topological solitons in living systems, but can also lead to technological advances. The mechanism that generates the self-driving, one-directional solitons uncovered in this study, can be used to control the motion of different types of waves (known as waveguiding), or to endow a metamaterial with a basic information processing capability such as filtering.

Future robots can also use topological solitons for basic robotic functionalities such as movement, sending out signals and sensing their surroundings. These functionalities would then not be controlled from a central point, but rather emerge from the sum of the robot’s active parts.

All in all, the domino effect of solitons in metamaterials, now an interesting observation in the lab, may soon start to play a role in different branches of engineering and design.
